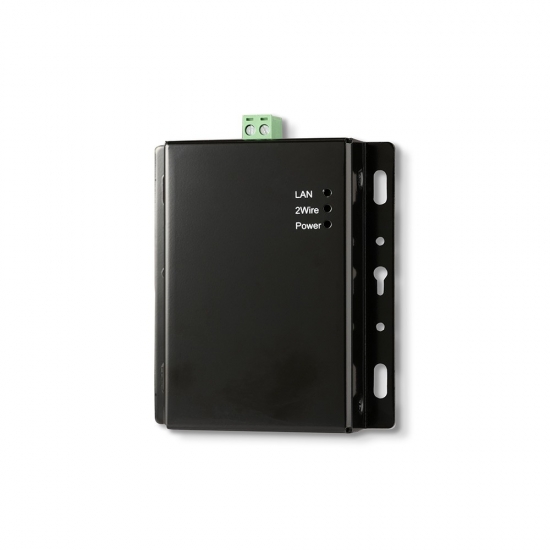

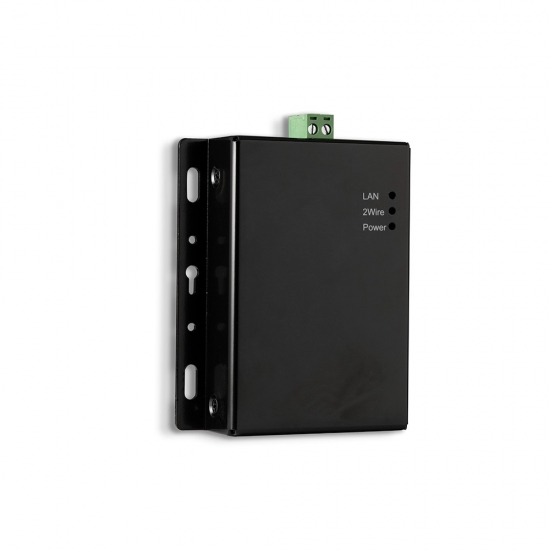

100% Original Intercom With Camera Wireless - 290 2-Wire IP System Slave Converter – DNAKE Detail:
1. There is no need to replace the existing wiring or cables. It can connect to 290A isolator or master converter using a two-wire cable.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
| Physical Property | ||||
| Size | 112x87x25mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 2W | |||
| Power Adapter | NA | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Interface | DC socket (Output 12VDC)*1 RJ45*1 2-core interface*1 |
|||
| LED Indicators | Power : Red – Power ON 2-Wire : Green – Link ON LAN: Green – Link ON | |||
| Transmission Method | Access Method : CSMA/CA Transmission scheme : Wavelet OFDM Frequency bandwidth : 2 MHz to 28 MHz | |||
| 2-wire | RVV 2*0.75, ≤100m | |||
| network cable | Cat 5e,Cat 6 or better | |||
Product detail pictures:
Related Product Guide:
As for aggressive costs, we believe that you will be searching far and wide for anything that can beat us. We can state with absolute certainty that for such high-quality at such rates we have been the lowest around for 100% Original Intercom With Camera Wireless - 290 2-Wire IP System Slave Converter – DNAKE, The product will supply to all over the world, such as: Myanmar , Lahore , Greece , Corporate goal: Customers' satisfaction is our goal, and sincerely hope to establish long-terms stable cooperative relations with customers to jointly develop the market. Building brilliant tomorrow together!Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
-
Datasheet 904M-S3.pdfDownload
