| Physical Property |
| System |
Android |
| RAM |
2GB |
| ROM |
8GB |
| Front Panel |
Aluminum |
| Power Supply |
PoE+ (802.3at) or DC12V/2A |
| Camera |
2MP, CMOS, WDR |
| Door Entry |
Face, IC (13.56MHz) & ID (125kHz) card, PIN code, APP, Bluetooth
|
| IP/IK Rating |
IP65 / IK08 |
| Installation |
Flush Mounting & Surface Mounting |
| Surface Mounting Dimension |
140 x 300 x 41.8 mm |
| Flush Mounting Dimension |
140 x 300 x 60.3 mm |
| Working Temperature |
-40℃ - +55℃ |
| Storage Temperature |
-40℃ - +70℃ |
| Working Humidity |
10%-90% (non-condensing) |
| Display |
| Display |

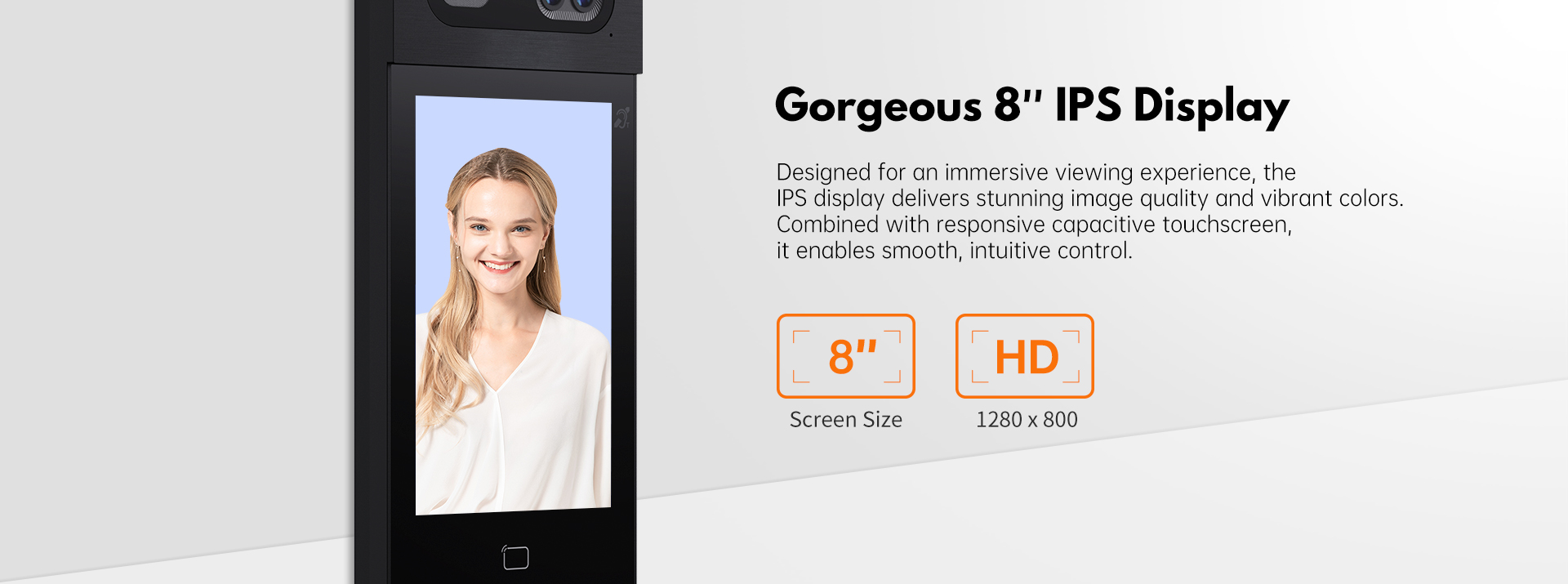

8-inch IPS LCD |
| Resolution |
1280 x 800 |
| Audio & Video |
| Audio Codec |
G.711 |
| Video Codec |
H.264 |
| Video Resolution |
up to 1920 x 1080 |
| Viewing Angle |
120°(H) / 75°(V) / 131°(D) |
| Light Compensation |
LED white light |
| Networking |
| Protocol |
Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port |
| Wiegand Port |
Support |
| Ethernet Port |
1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port |
1 |
| Relay Out |
3 |
| Reset Button |
1 |
| Input |
4 |
-
Datasheet 904M-S3.pdfDownload
