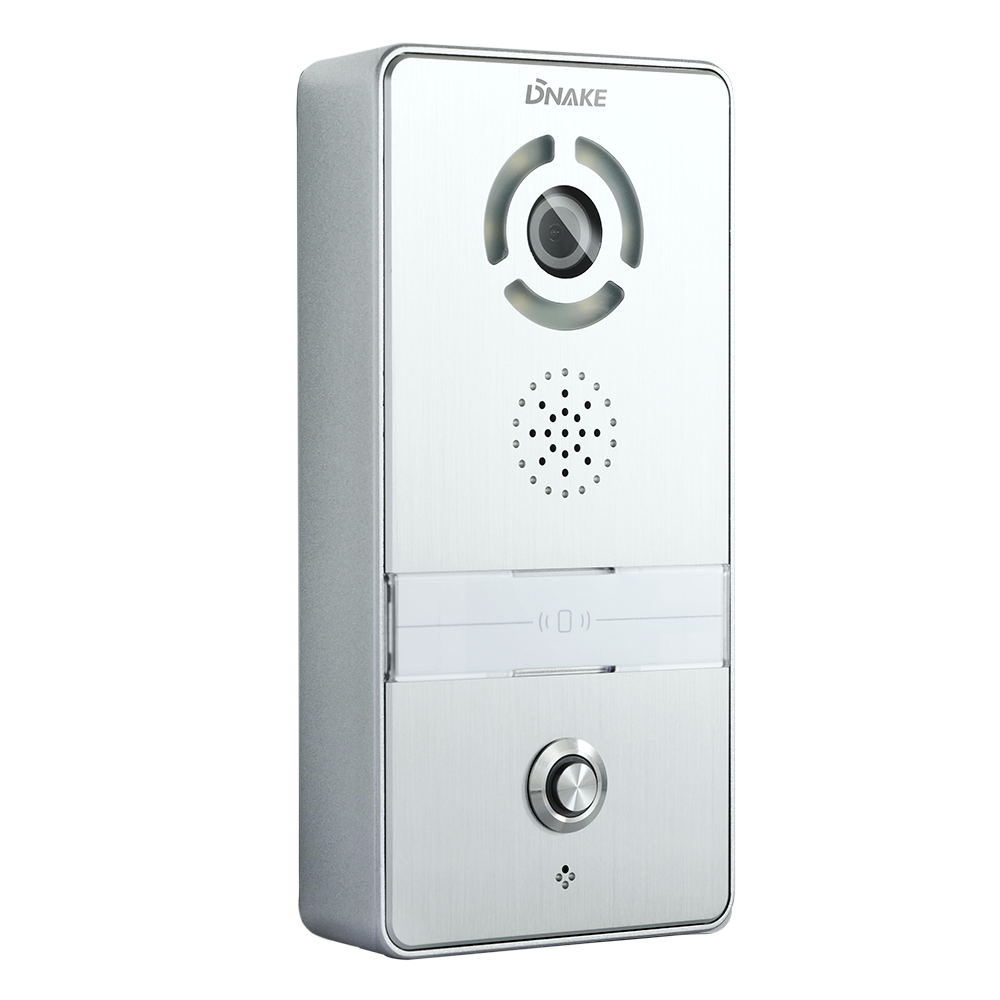

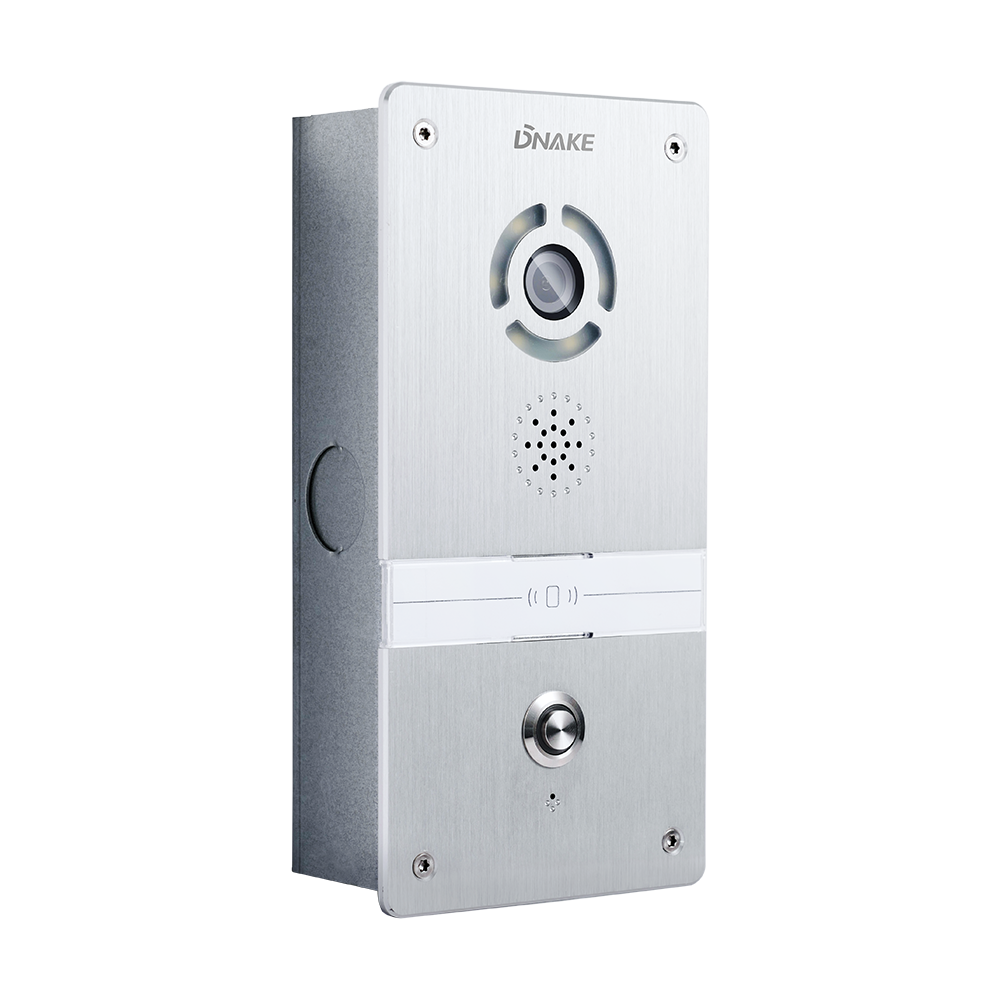

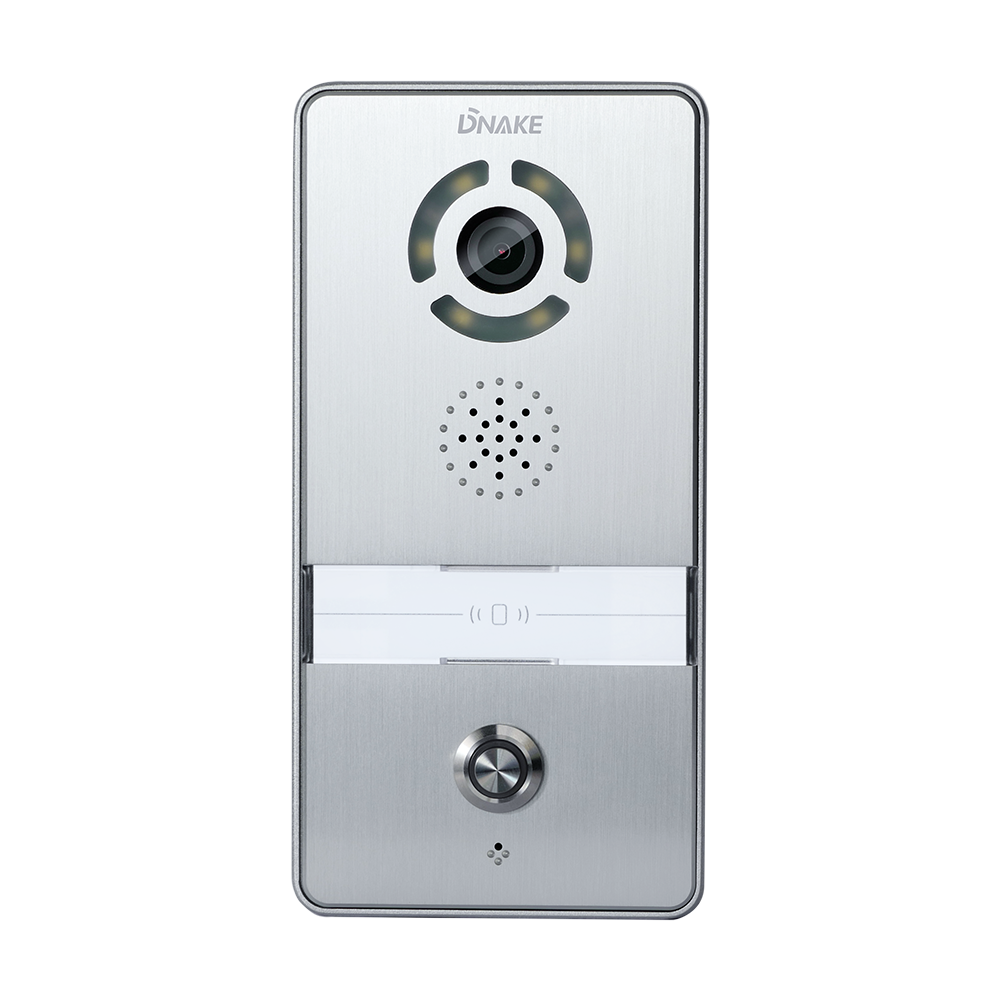

8 Year Exporter SIP Intercom System - 1-button SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| RAM | 64MB |
| ROM | 128MB |
| Front Panel | Aluminum |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 3W |
| Camera | 2MP, CMOS |
| IR Sensor | Support |
| Door Entry | IC card(13.56MHz), NFC |
| IP/IK Rating | IP65 / IK07 |
| Installation | Flush/Surface Mounting |
| Dimension | 190 x 95 x 27 mm (Flush Mounting); 170 x 84.5 x 31 mm (Surface Mounting) |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 100°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 1 |
| Exit Button | 1 |
| Door Magnetic | 1 |
Product detail pictures:
Related Product Guide:
continue on to further improve, to make sure product top quality in line with market and consumer standard requirements. Our firm has a excellent assurance program have already been established for 8 Year Exporter SIP Intercom System - 1-button SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Myanmar , St. Petersburg , Netherlands , With the advanced workshop, professional design team and strict quality control system, based on mid- to high-end marked as our marketing positioning, our products are fast selling onto European and American markets with our own brands such as below Deniya, Qingsiya and Yisilanya.
-
Datasheet 904M-S3.pdfDownload
