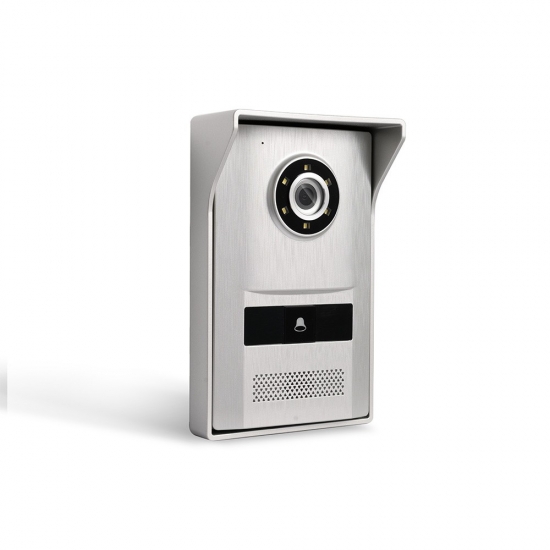

Android Door Camera System - 1-button SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| CPU | 1GHz,ARM Cortex-A7 |
| SDRAM | 128MB |
| Flash | 64M DDR2 |
| Product Size | 111x170.5x38.6(mm) |
| Power | DC12V/POE |
| Standby power | 1.5W |
| Rated Power | 3W |
| RFID Card Reader | IC/ID (Optional), 200,00 pcs |
| Button | Mechanical Button |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Installation | Surface Mounted |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280x720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock Circuit | Yes(Withstand max current 3.5A for lock) |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
Datasheet 280SD-R2.pdfDownload
Product detail pictures:
Related Product Guide:
With a sound enterprise credit history, exceptional after-sales services and modern production facilities, we've earned an outstanding track record amongst our consumers across the whole world for Android Door Camera System - 1-button SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Hanover , Kuwait , Honduras , With nearly 30 years' experience in business, we are confident in superior service, quality and delivery. We warmly welcome customers from all over the world to cooperate with our company for common development.
