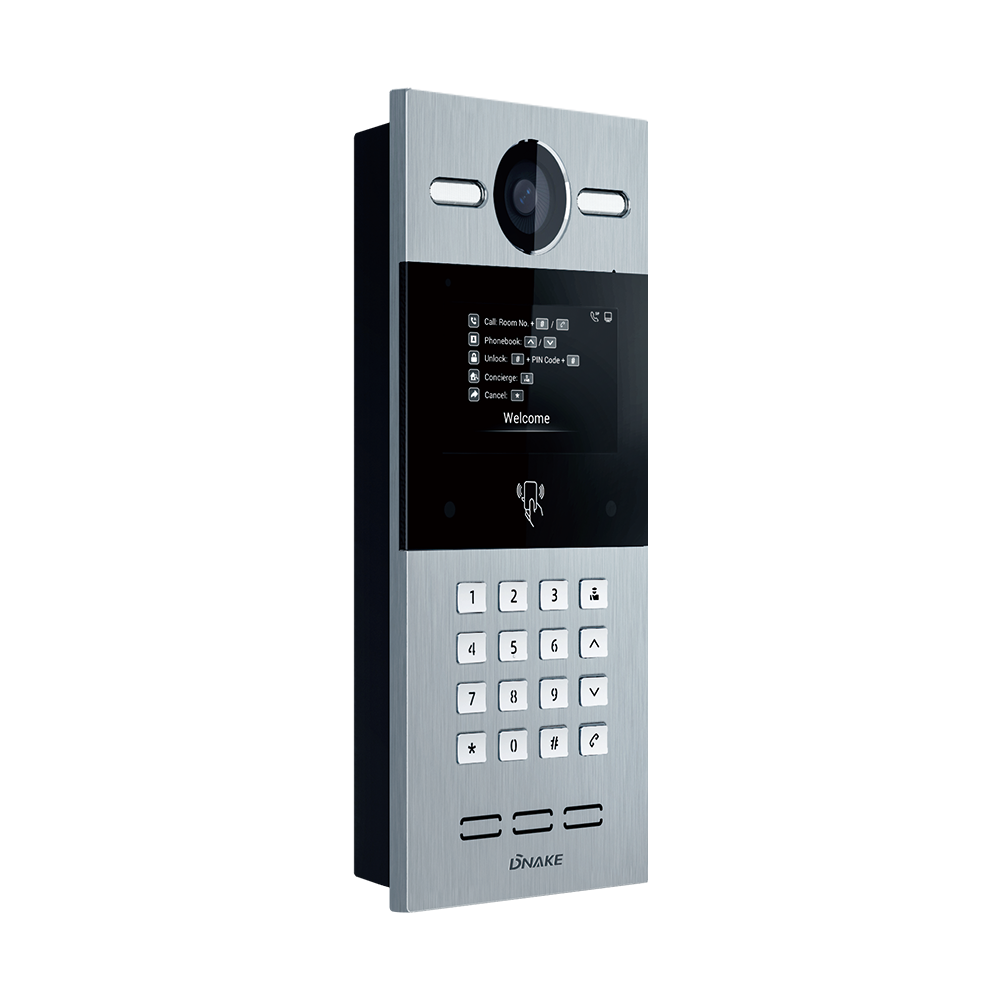

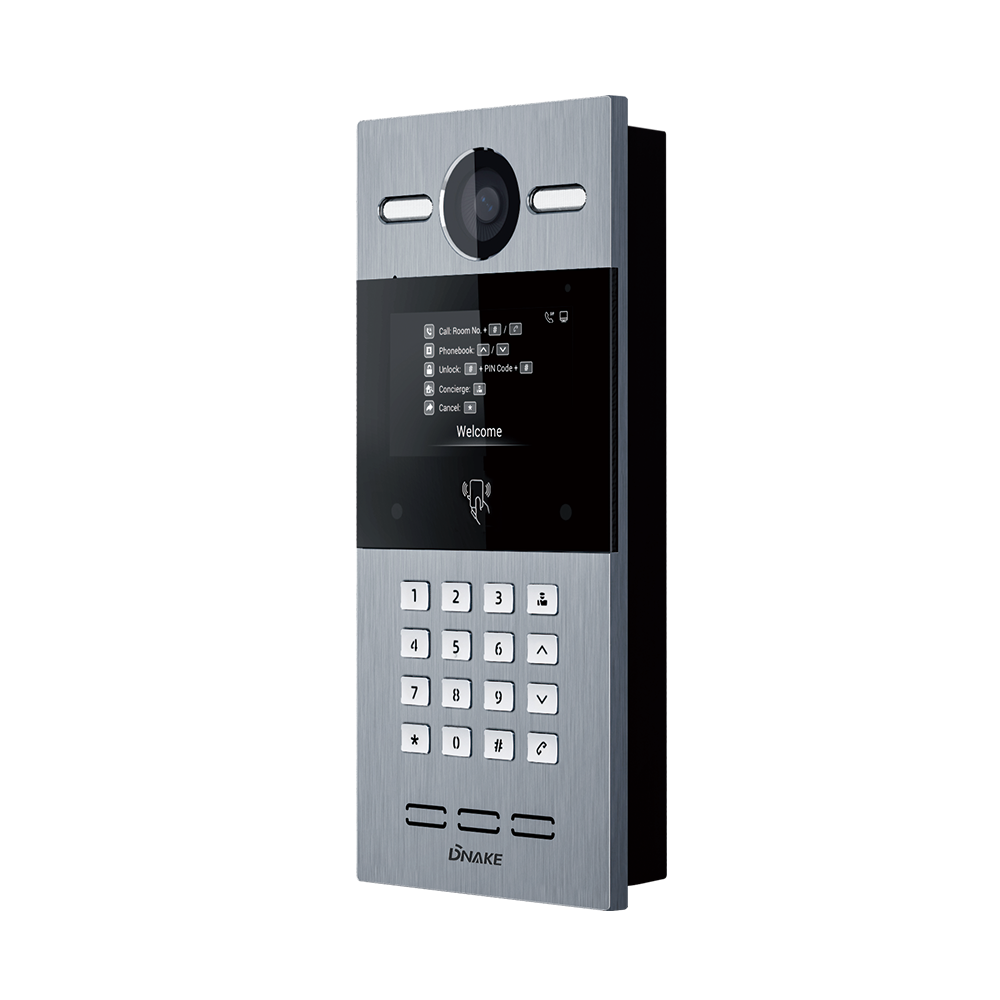

Android Intercom For Home - 4.3” SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| Front Panel | Aluminum |
| Button | Mechanical |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 9W |
| Camera | 2MP, CMOS |
| Door Entry | IC card(13.56MHz), ID card(125kHz), PIN code, NFC |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Installation | Flush Mounting & Surface Mounting |
| Flush Mounting Dimension | 295 x 133 x 63.5 mm |
| Surface Mounting Dimension | 295 x 133 x 42.7 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 4.3-inch TFT LCD |
| Resolution | 480 x 272 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 110°(H) / 67°(V) / 127°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 3 |
| Reset Button | 1 |
| Exit Button/Door Magnetic | 4 |
Product detail pictures:
Related Product Guide:
We not only will try our best to offer excellent services to every customer, but also are ready to receive any suggestion offered by our customers for Android Intercom For Home - 4.3” SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Amman, French , Swedish , Our company always provides good quality and reasonable price for our customers. In our efforts, we already have many shops in Guangzhou and our products have won praise from customers worldwide. Our mission has always been simple: To delight our customers with best quality hair products and deliver on time. Welcome new and old customers to contact us for the future long term business relationships.
-
Datasheet 904M-S3.pdfDownload
