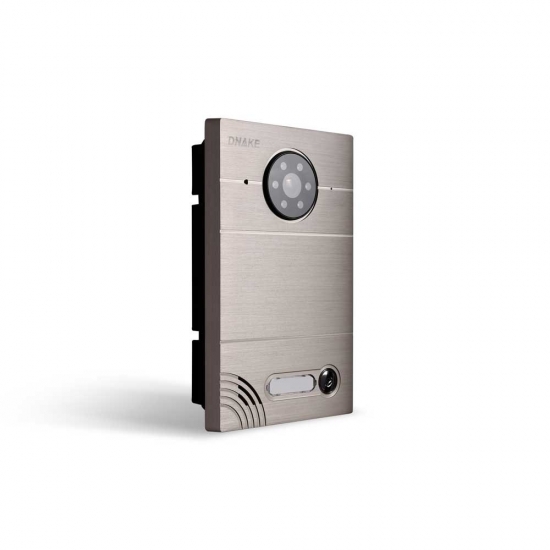

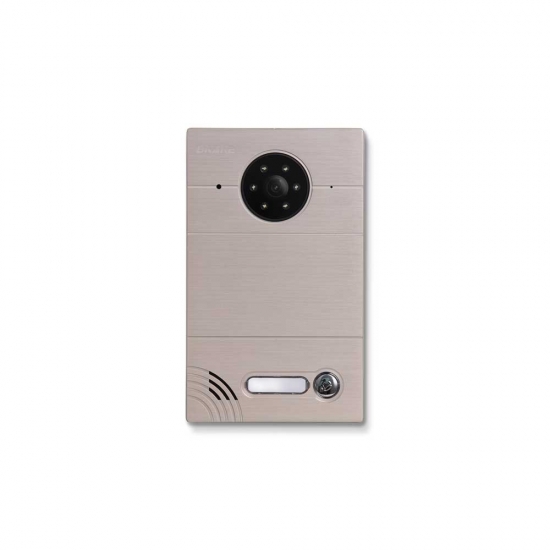

Apartment Intercom - 280SD-C3S Linux SIP2.0 Villa Panel – DNAKE Detail:
Linux SIP2.0 Villa Panel
1. SIP-based door phone supports call with SIP phone or softphone, etc.
2. It can work with the lift control system via RS485 interface.
3. When equipped with one optional unlocking module, two relay outputs can be connected to control two locks.
4. Weatherproof and vandal-proof design ensures the stability and service life of the device.
5. It can be powered by PoE or an external power source.
| Physical Property | |
| System | Linux |
| CPU | 1GHz，ARM Cortex-A7 |
| SDRAM | 128MB |
| Flash | 64M DDR2 |
| Product Size | 116x192x47(mm) |
| Build-in Box size | 100x177x45(mm) |
| Treppanning Size | 105x182x52(mm) |
| Power | DC12V/POE |
| Standby power | 1.5W |
| Rated Power | 3W |
| Button | Mechanical Button |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280×720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock circuit | Yes |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
Product detail pictures:
Related Product Guide:
We attempt for excellence, support the customers", hopes to become the top cooperation team and dominator enterprise for staff, suppliers and shoppers, realizes worth share and continual marketing for Apartment Intercom - 280SD-C3S Linux SIP2.0 Villa Panel – DNAKE, The product will supply to all over the world, such as: Vietnam , Brunei , Zurich , Aiming to grow to be by far the most professional supplier within this sector in Uganda, we keep researching on the creating procedure and raising the high quality of our principal goods. Till now, the merchandise list has been updated on a regular basis and attracted customers from around the globe. Detailed data can be obtained in our web page and you'll be served with good quality consultant service by our after-sale team. They're going to allow you to get complete acknowledge about our items and make a satisfied negotiation. Small business check out to our factory in Uganda can also be welcome at any time. Hope to obtain your inquiries to get a happy co-operation.
-
Datasheet 904M-S3.pdfDownload
