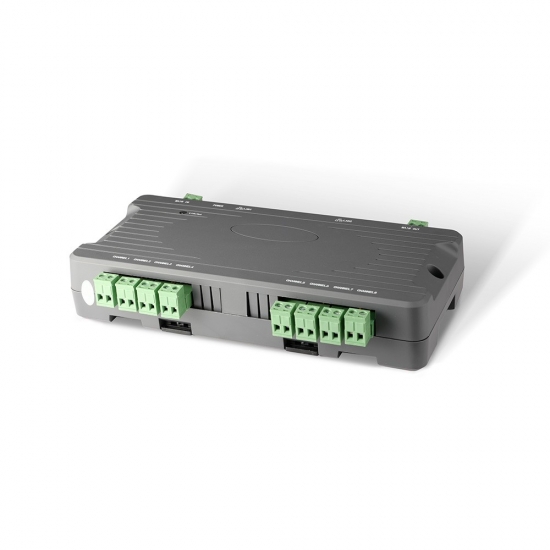

Best Intercom System - 290A IP-2Wire Isolator – DNAKE Detail:
1.There is no need to replace the existing wiring or cables. It can connect to 290 IP device with two-wire cables, even in an analog environment.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
| Physical Property | ||||
| Size | 197x114x38mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 4W | |||
| Power Adapter | 48VDC / 1.25A,60W | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Interface | DC socket (Input 48VDC)*1 RJ45*2 2-core interface(Main In)*1 2-core interface(Main Out)*1 2-core interface(connect to indoor monitor)*8 |
|||
| LED Indicators | Link:green light flashes-Network connection status; Act:red light always on-2WIRE connection status |
|||
| Transmission Method | Access Method : CSMA/CA Transmission scheme: Wavelet OFDM Frequency bandwidth : 2 MHz to 28 MHz | |||
| 2-wire | RVV 2*0.75, ≤100m | |||
| network cable | Cat 5e, Cat 6 or better | |||
Product detail pictures:
Related Product Guide:
As a way to ideal meet up with client's desires, all of our operations are strictly performed in line with our motto "High Top quality, Competitive Cost, Fast Service" for Best Intercom System - 290A IP-2Wire Isolator – DNAKE, The product will supply to all over the world, such as: Indonesia , Karachi , Venezuela , We aim to become the modern enterprise with the commercial ideal of "Sincerity and confidence" and with the aim of "Offering customers the most sincere services and best quality products". We sincerely ask for your unchanged support and appreciate your kind advice and guidance.
-
