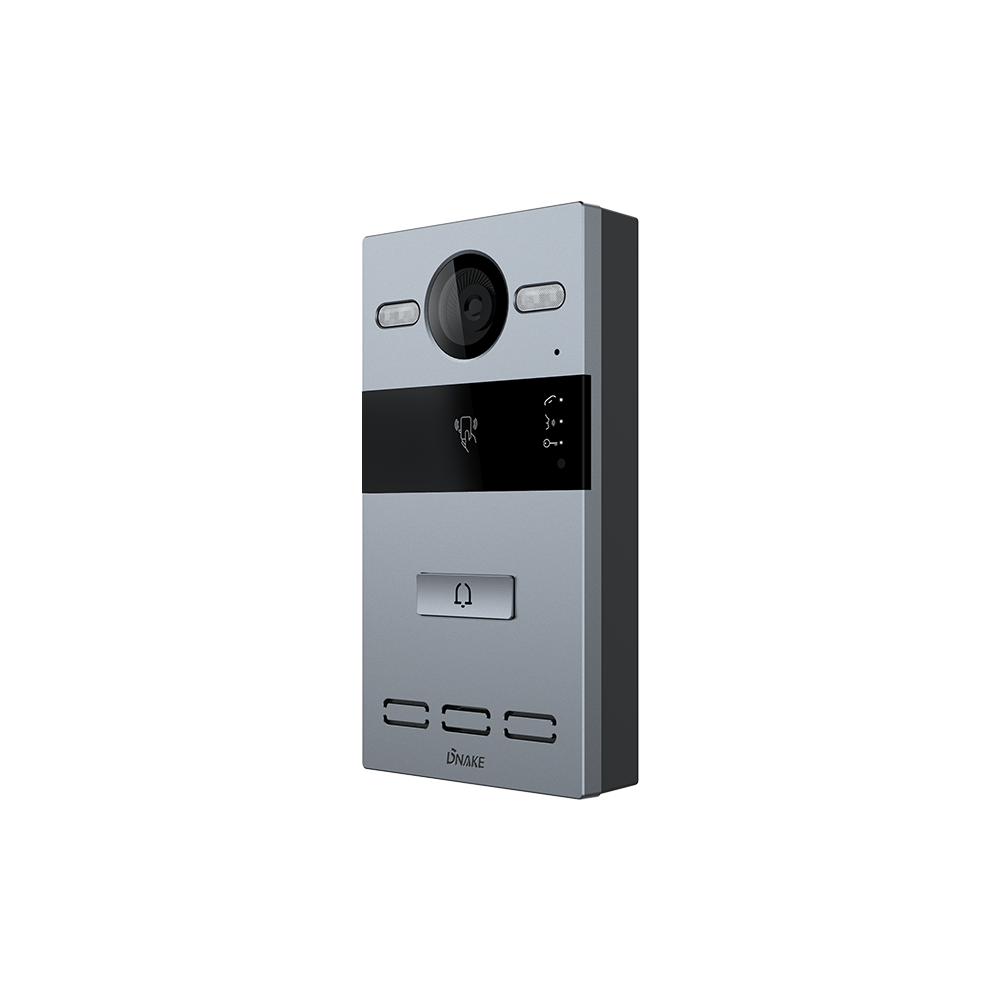

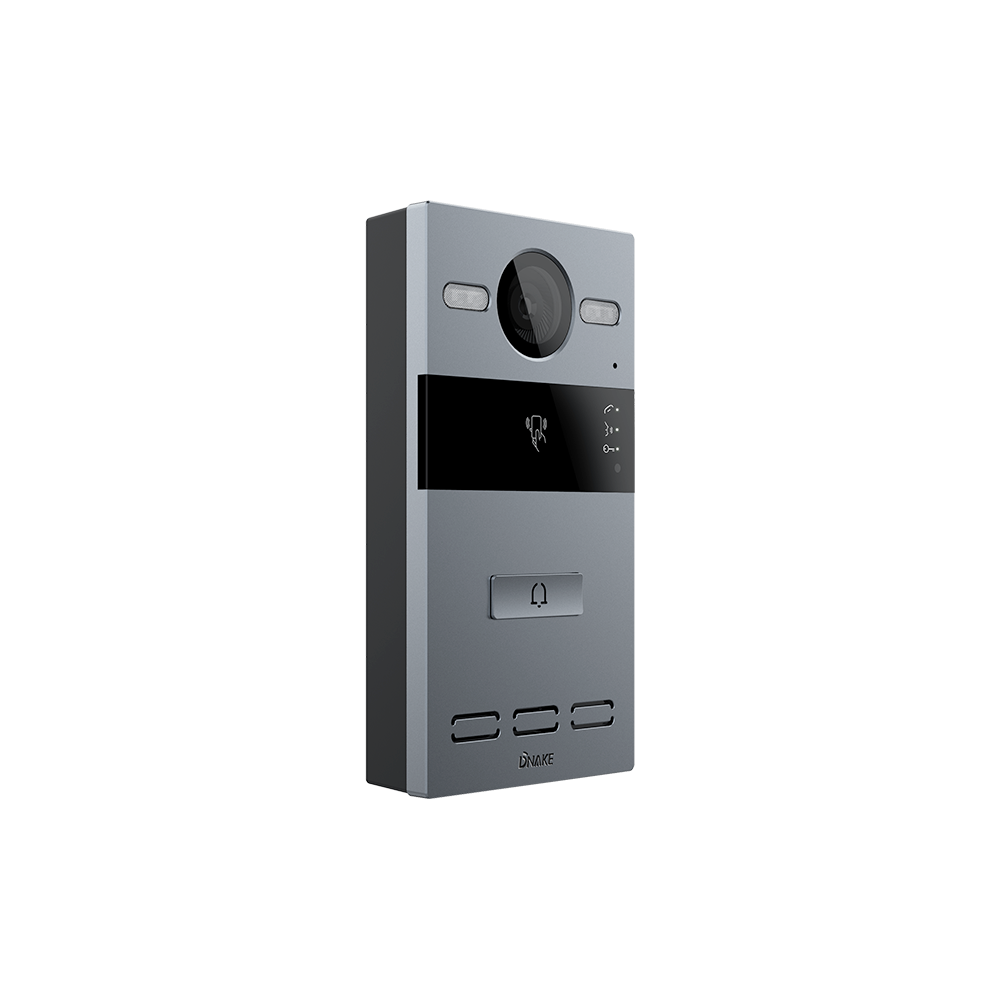

Call Station - 1-button SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| RAM | 64MB |
| ROM | 128MB |
| Front Panel | Aluminum |
| Reset Button | 1 |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 3W |
| Camera | 2MP, CMOS |
| Indicator Light | 3 |
| Door Entry | IC (13.56MHz),ID (125kHz) card in one, NFC |
| IP/IK Rating | IP65 / IK07 |
| Installation | Flush/Surface Mounting |
| Dimension | 210 x 120 x 32 mm (Flush Mounting); 168 x 88 x 34 mm (Surface Mounting) |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 110°(H) / 60°(V) / 125°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 2 |
| Exit Button | 1 |
| Door Magnetic | 1 |
Product detail pictures:
Related Product Guide:
Dependable good quality and very good credit score standing are our principles, which will help us at a top-ranking position. Adhering towards the tenet of "quality initial, shopper supreme" for Call Station - 1-button SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Madrid , Mali , Mecca , We have been very responsible for all details on our customers order no matter on warranty quality, satisfied prices, quick delivery, on time communication, satisfied packing, easy payment terms, best shipment terms, after sales service etc. We provide one-stop service and best reliability to our every customers. We work hard with our customers, colleagues, workers to make a better future.
-
Datasheet 904M-S3.pdfDownload
