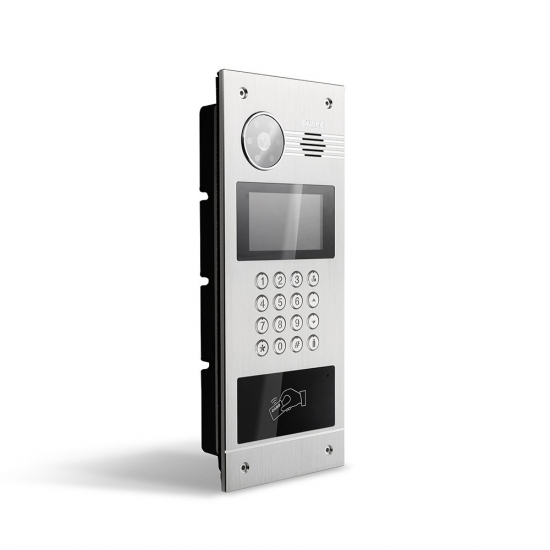

Door Entry Phone - 280D-A9 – DNAKE Detail:
1. 280D-A9 is a SIP intercom with a numeric keypad and built-in card reader.
2. Integration with elevator control system brings more convenience to life and increases security in the building.
3. 20,000 IC cards can be identified on the outdoor panel for door access control.
4. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
5. Mechanical or touch keypad is available for selection.
6. According to the user's needs, it can be powered by PoE or an external power source.
2. Integration with elevator control system brings more convenience to life and increases security in the building.
3. 20,000 IC cards can be identified on the outdoor panel for door access control.
4. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
5. Mechanical or touch keypad is available for selection.
6. According to the user's needs, it can be powered by PoE or an external power source.
| Physical Property | |
| System | Linux |
| CPU | 1GHz，ARM Cortex-A7 |
| SDRAM | 64M DDR2 |
| Flash | 128MB |
| Screen | 4.3 inch LCD,480x272 |
| Power | DC12V/POE(Optional) |
| Standby power | 1.5W |
| Rated Power | 9W |
| Card Reader | IC/ID(Optional) Card, 20,000 pcs |
| Button | Mechanical Button/Touch Button(optional) |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280×720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock circuit | Yes(maximum 3.5A current) |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 280D-A9.pdfDownload
