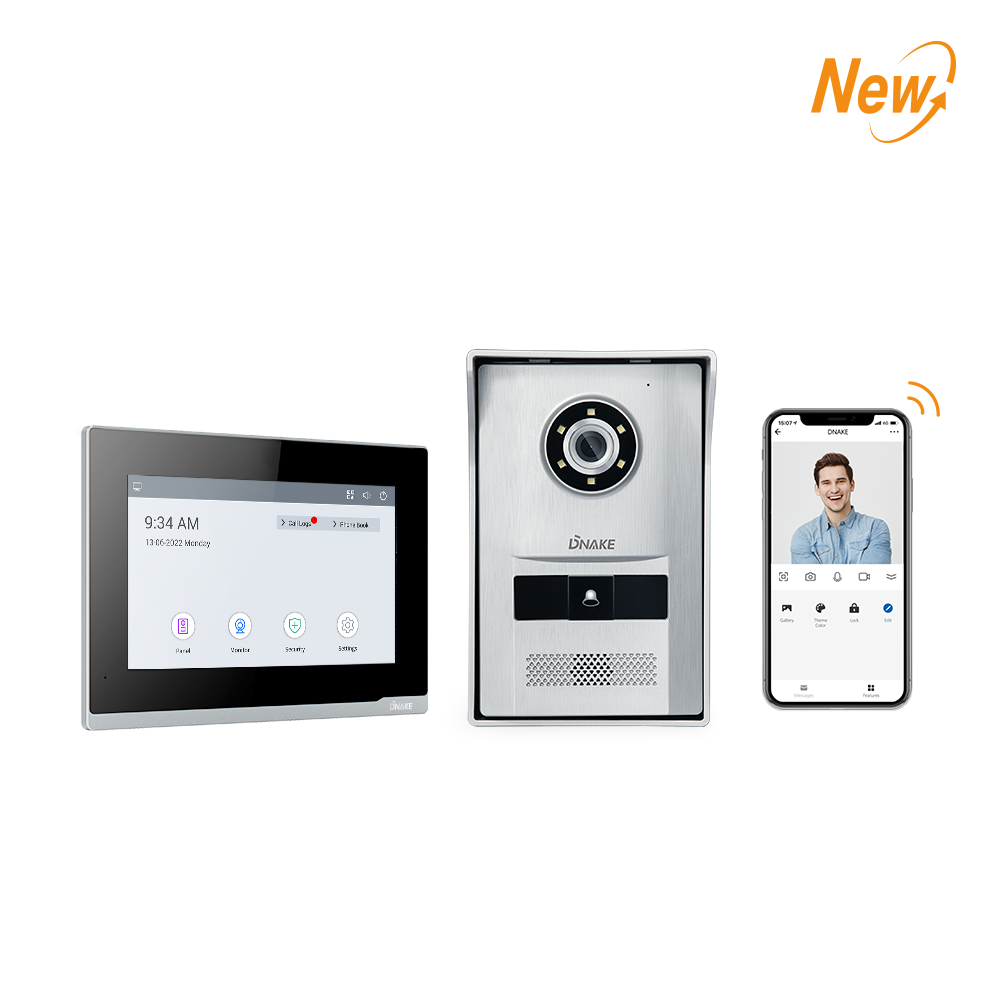

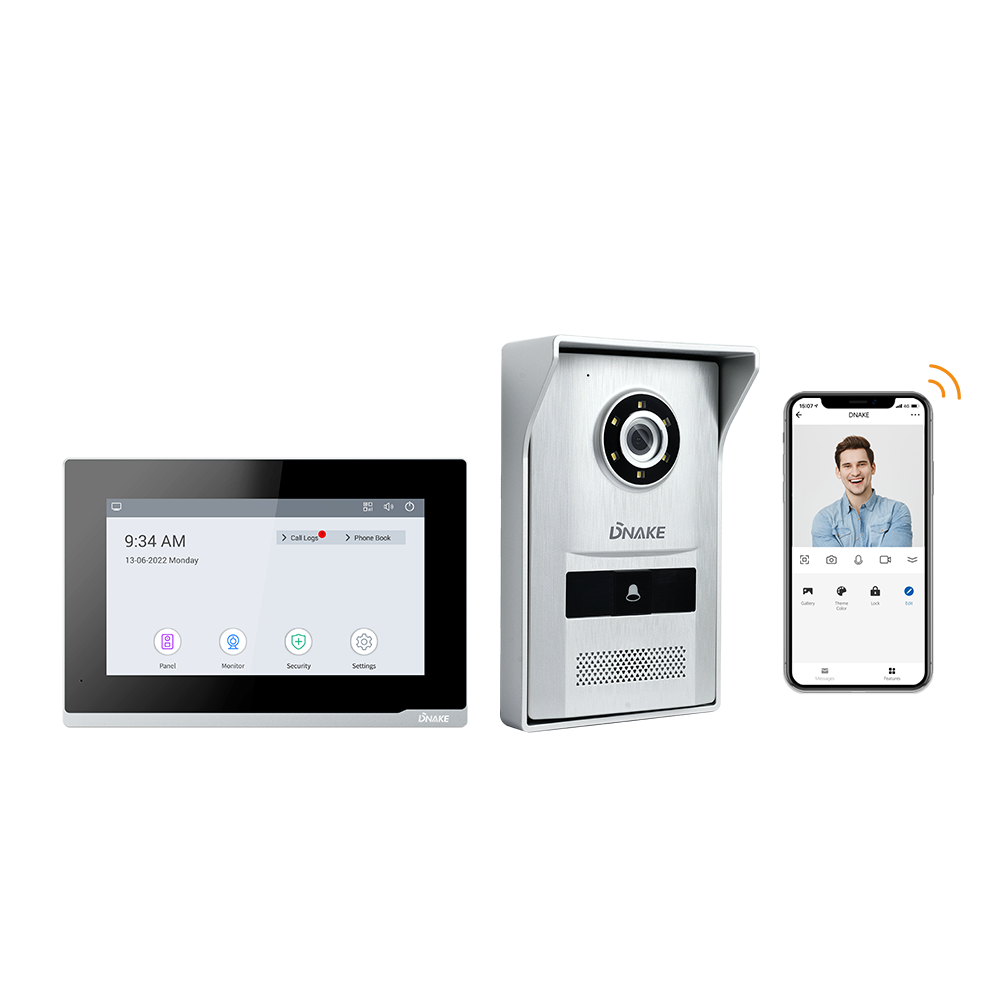

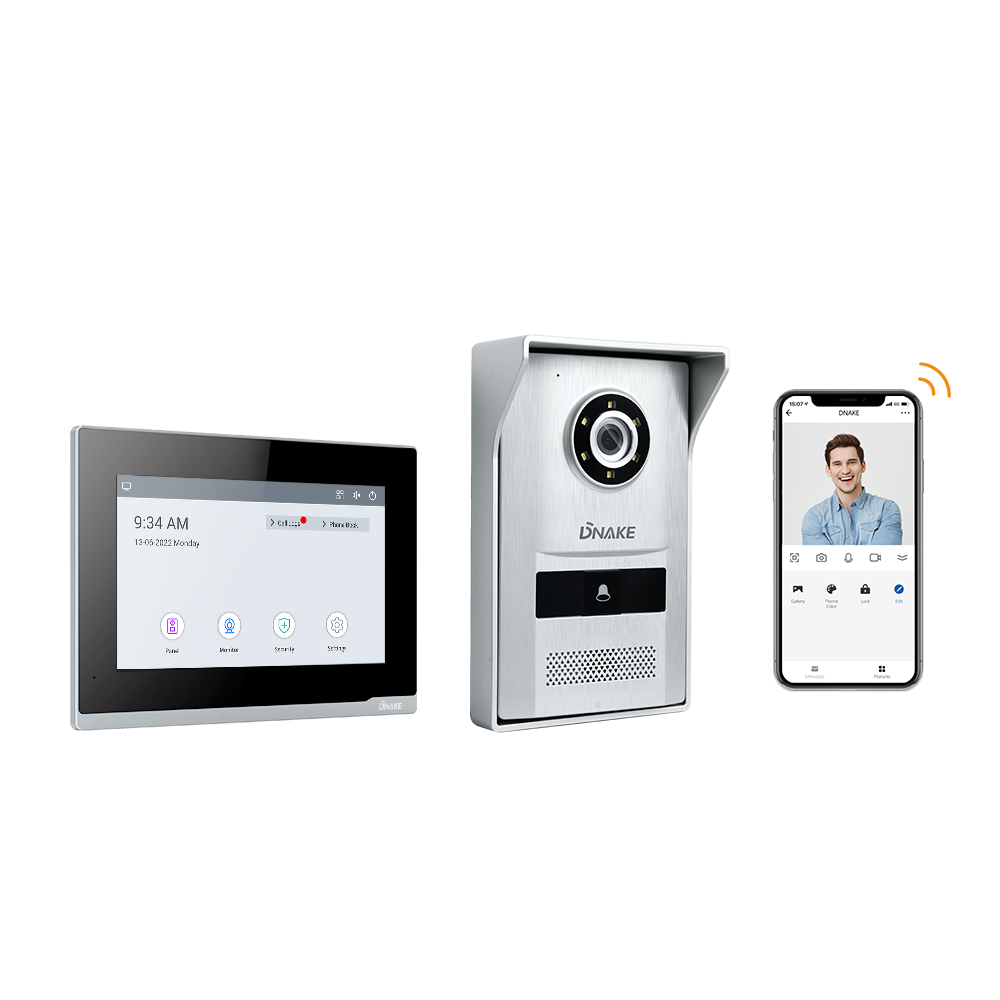

Door Intercom Systems - IP Video Intercom Kit – DNAKE Detail:
| Physical Property | |
| System | Android |
| RAM | 2GB |
| ROM | 8GB |
| Front Panel | Aluminum |
| Power Supply | DC12V/2A or PoE (External PoE) |
| Standby Power | 5W |
| Rated Power | 25W |
| Camera | 2MP, CMOS |
| IR Sensor | Support |
| Door Entry | Face, IC card(13.56MHz), PIN code, NFC |
| IP Rating | IP65 |
| Installation | Surface mounting |
| Dimension | 227 x 122 x 20 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 7-inch TFT LCD |
| Screen | 7-inch capacitive touch screen |
| Resolution | 1024 x 600 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | up to 1920 x 1080 |
| Viewing Angle | 100°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 1 |
| Exit Button | 1 |
| Door Magnetic | 1 |
Product detail pictures:
Related Product Guide:
We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our administration ideal for Door Intercom Systems - IP Video Intercom Kit – DNAKE, The product will supply to all over the world, such as: Slovakia , Saudi Arabia , Algeria , Our products have mainly exported to south-east Asia Euro-America, and sales to all of our country. And depending on excellent quality, reasonable price, best service, we've got got good feedback from customers overseas. You are welcomed to join us for more possibilities and benefits. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
-
Datasheet 904M-S3.pdfDownload
