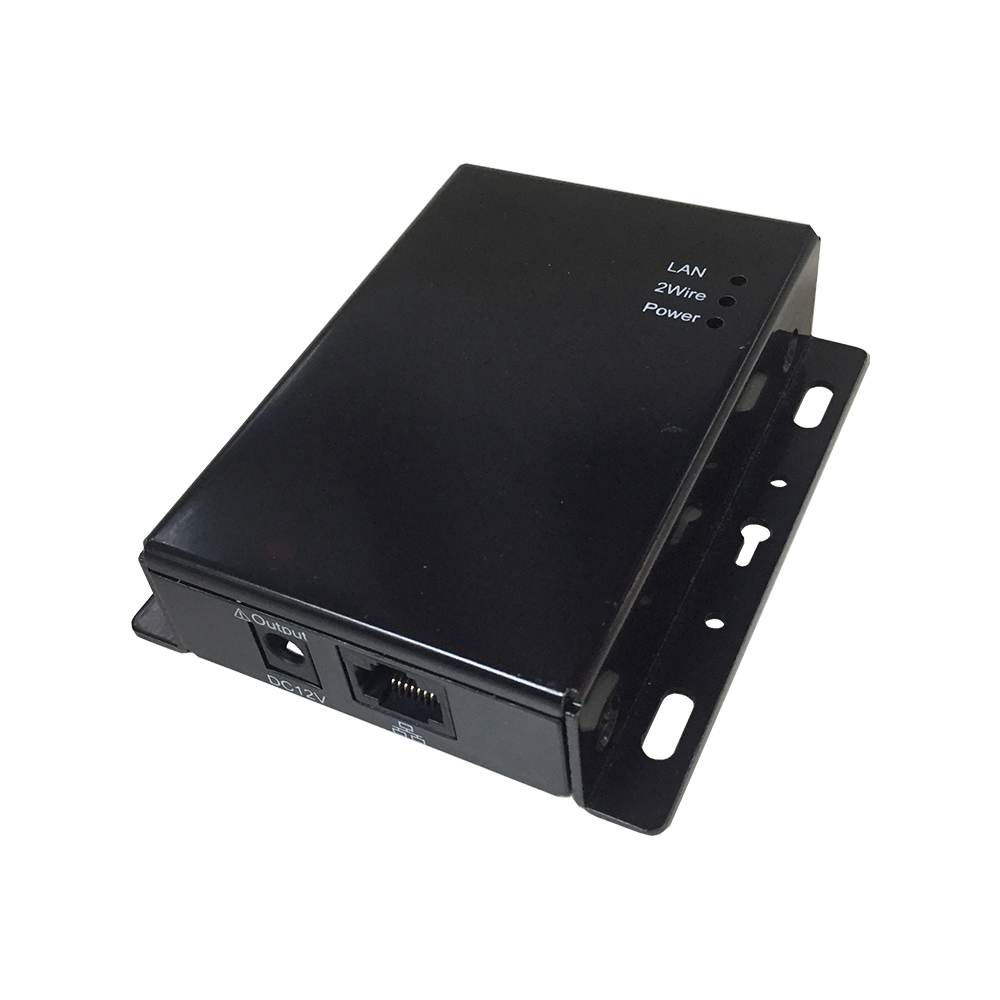

Good Quality 2-wire Ip Intercom - 2-Wire IP System Converter – DNAKE Detail:
1. There is no need to replace the existing wiring or cables. It can connect to 290A isolator or master converter using a two-wire cable.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
| Physical Property | ||||
| Size | 112x87x25mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 2W | |||
| Power Adapter | NA | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Network Cable | Cat 5e, Cat 6 or better | |||
| 2-wire | RVV 2*0.75, ≤100m | |||
| Interface | ||||
| RJ45 | Yes | |||
| 2-Wire | Yes | |||
| DC Socket | Yes (Output 12VDC) | |||
| LED Indicators | ||||
| Power | Red – Power ON | |||
| 2-Wire | Green – Link ON | |||
| LAN | Green – Link ON | |||
| Transmission Method | ||||
| Access Method | CSMA/CA | |||
| Transmission Scheme | Wavelet OFDM | |||
| Frequency Bandwidth | 2 MHz to 28 MHz | |||
Product detail pictures:
Related Product Guide:
Our primary objective is usually to offer our shoppers a serious and responsible small business relationship, offering personalized attention to all of them for Good Quality 2-wire Ip Intercom - 2-Wire IP System Converter – DNAKE, The product will supply to all over the world, such as: Poland , Las Vegas , Congo , Our advanced equipment, excellent quality management, research and development ability make our price down. The price we offering may not be the lowest, but we guarantee it is absolutely competitive! Welcome to contact us immediately for future business relationship and mutual success!
-
Datasheet 904M-S3.pdfDownload
