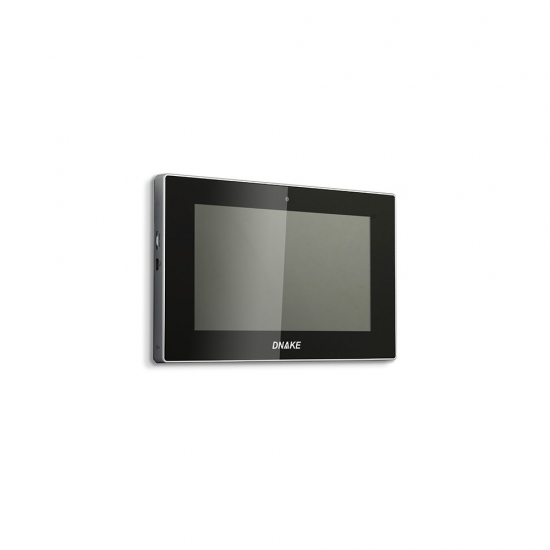

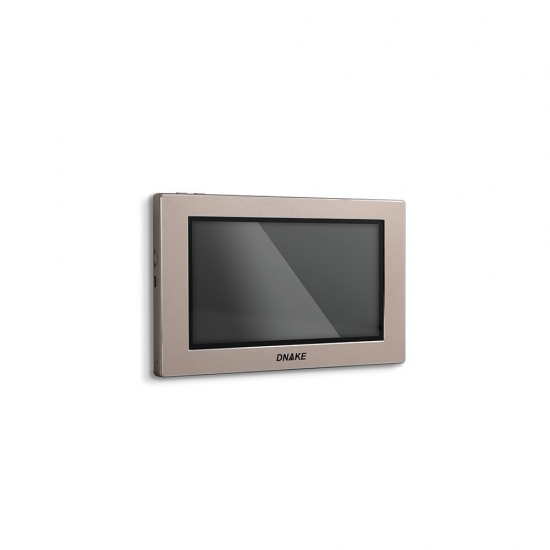

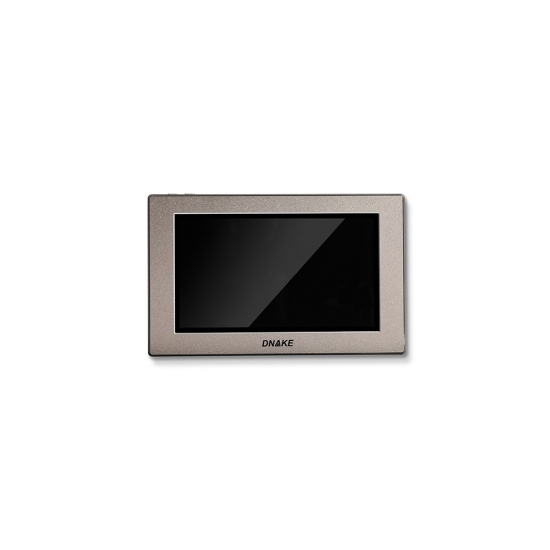

Indoor Unit - 902M-S4 – DNAKE Detail:
1. User interface can be customized and programmed as needed.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can install any app on the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor, etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it integrates with smart home system, you are able to control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can enjoy clear audio communication with visitors and see them before granting or denying access as well as call the neighbors using the monitor.
8. It can be powered by PoE or external power source.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can install any app on the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor, etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it integrates with smart home system, you are able to control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can enjoy clear audio communication with visitors and see them before granting or denying access as well as call the neighbors using the monitor.
8. It can be powered by PoE or external power source.
| Physical Property | |
| System | Android 4.4.2 |
| CPU | Quad core 1.3GHz Cortex-A7 |
| Memory | DDR3 512MB |
| Flash | 4GB |
| Display | 7" TFT LCD, 1024x600 |
| Power | DC12V/PoE |
| Standby power | 3W |
| Rated Power | 10W |
| TF Card & USB Support | Yes (Maximum 32 GB) |
| WiFi | Optional |
| Temperature | -10℃ - +55℃ |
| Humidity | 20%-85% |
| Audio & Video | |
| Audio Codec | G.711U, G711A, G.729 |
| Video Codec | H.264 |
| Screen | Capacitive, Touch Screen |
| Camera | Yes(Optional), 0.3M Pixels |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | SIP,TCP/IP, RTSP, RTP, HTTP |
| Features | |
| IP Camera Support | 8-way Cameras |
| Door Bell Input | Yes |
| Record | Picture/Audio/Video |
| AEC/AGC | Yes |
| Home Automation | Yes(RS485) |
| Alarm | Yes(8 Zones) |
-
Datasheet 902M-S4.pdfDownload
