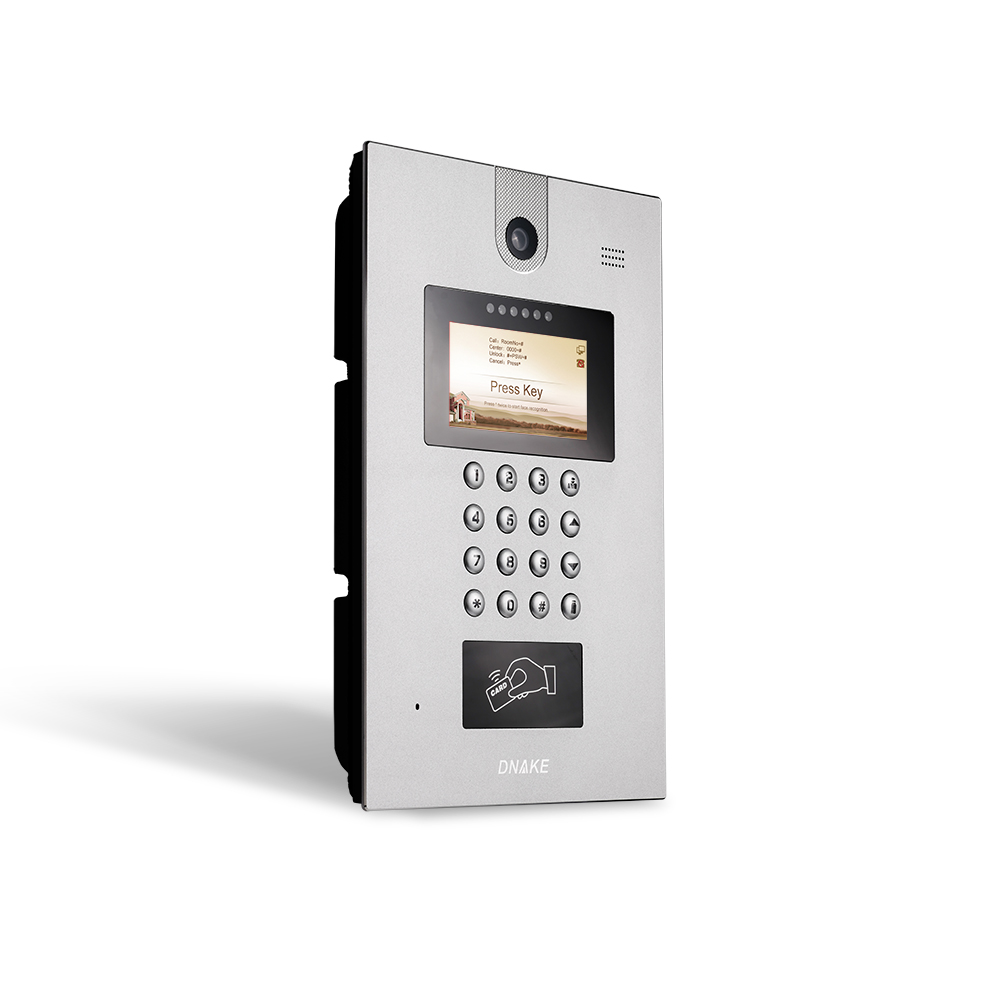

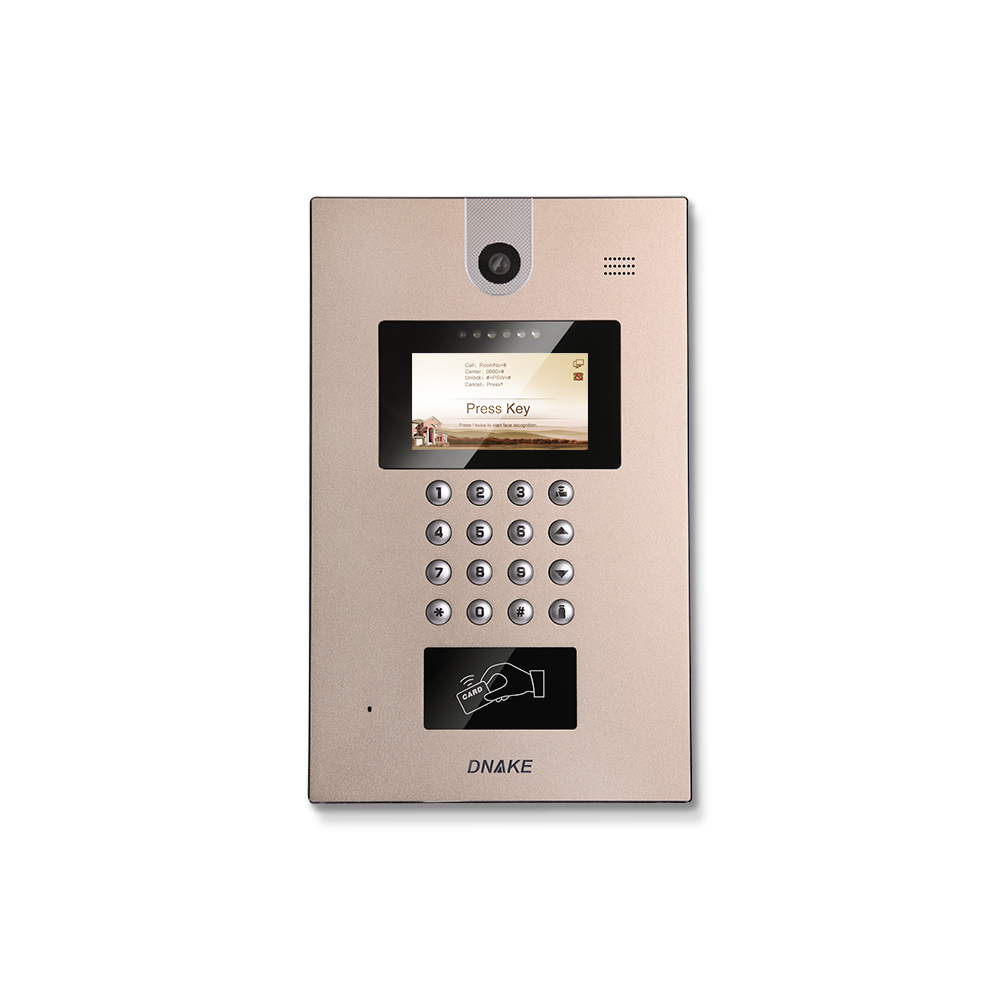

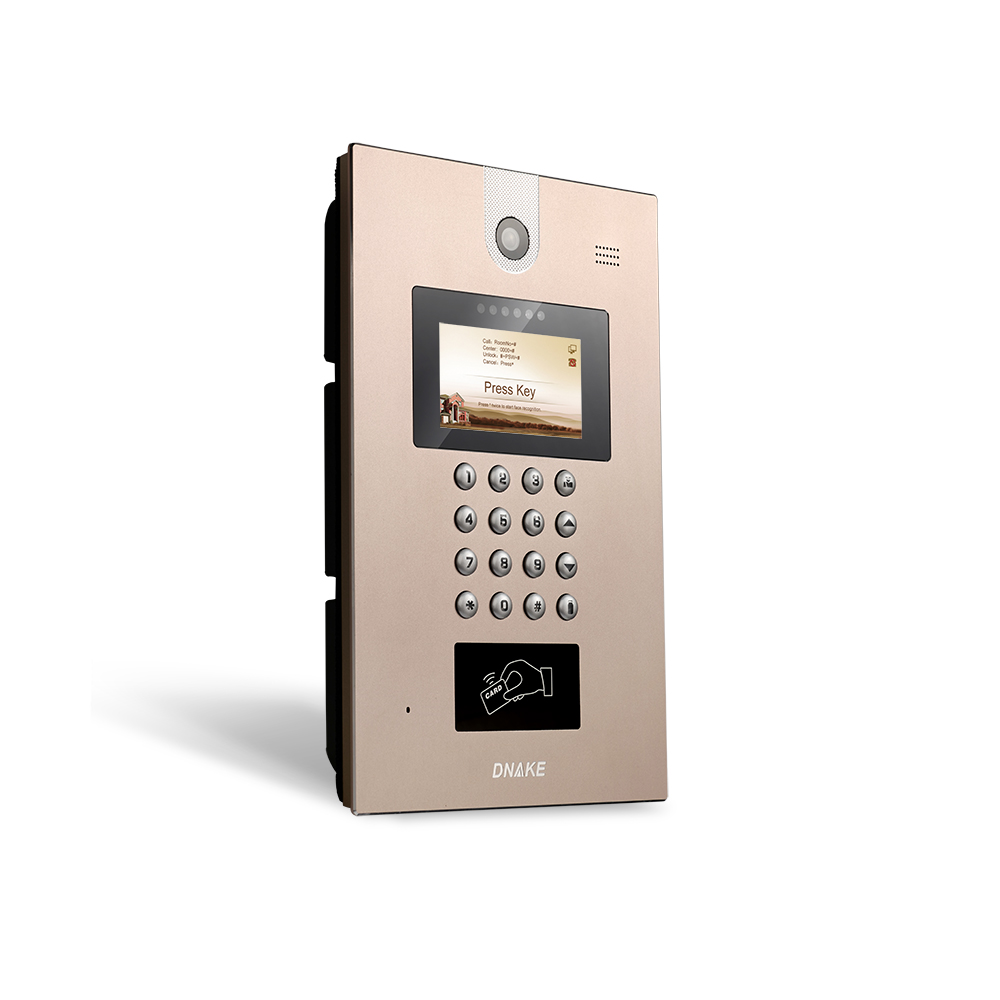

Intercoms For Sale - 902D-A7 – DNAKE Detail:
1. The door can be unlocked by facial recognition, password, or IC/ID cards (max. 100,000PCS).
2. One-megapixel camera provides 720p resolution video.
3. It's a SIP-based call station with a numeric keypad and built-in card reader.
4. Integration with elevator control system brings more convenience to life and increases security in the building.
5. The accuracy of face recognition reaches 99% with the capacity of 10,000 face images, which ensures better door access.
6. The combination of infrared detection function and facial recognition unlocking brings the user a touch-free access control solution.
7. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
2. One-megapixel camera provides 720p resolution video.
3. It's a SIP-based call station with a numeric keypad and built-in card reader.
4. Integration with elevator control system brings more convenience to life and increases security in the building.
5. The accuracy of face recognition reaches 99% with the capacity of 10,000 face images, which ensures better door access.
6. The combination of infrared detection function and facial recognition unlocking brings the user a touch-free access control solution.
7. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
| Physical Property | |
| System | Android 4.4.2 |
| CPU | Quad-Core 1.3GHz |
| SDRAM | 512MB DDR3 |
| Flash | 8GB NAND Flash |
| Display | 4.3" TFT LCD, 480x272 |
| Face Recognition | Yes |
| Power | DC12V |
| Standby power | 3W |
| Rated Power | 10W |
| Button | Mechanical button |
| RFID Card Reader | IC/ID Optional, 100,000 pcs |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Multiple Installation | Flush Mounted, Base Mounted |
| Audio & Video | |
| Audio Codec | G.711, G.729 |
| Video Codec | H.264 |
| Camera | CMOS 2M Pixel(WDR) |
| LED Night Vision | Yes(6pcs) |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP, RTSP |
| Interface | |
| Relay output | Yes |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 902D-A7.pdfDownload
