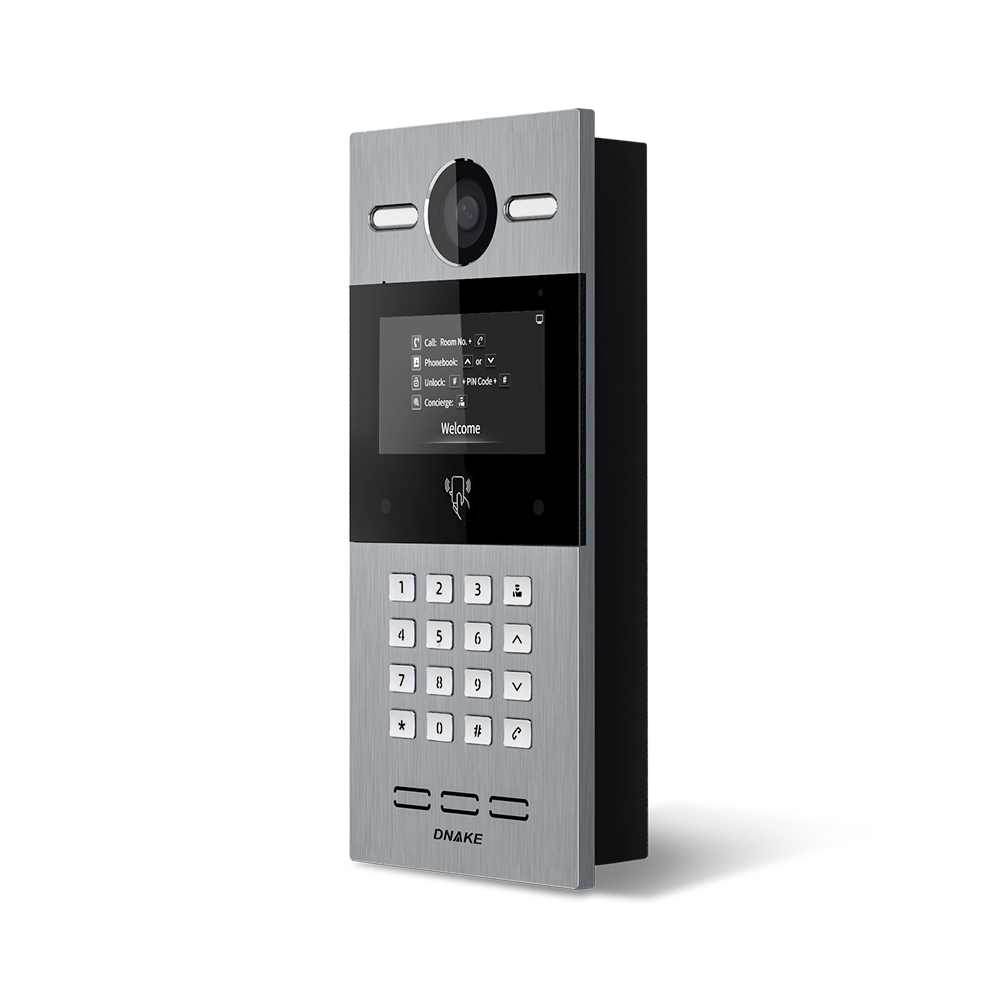

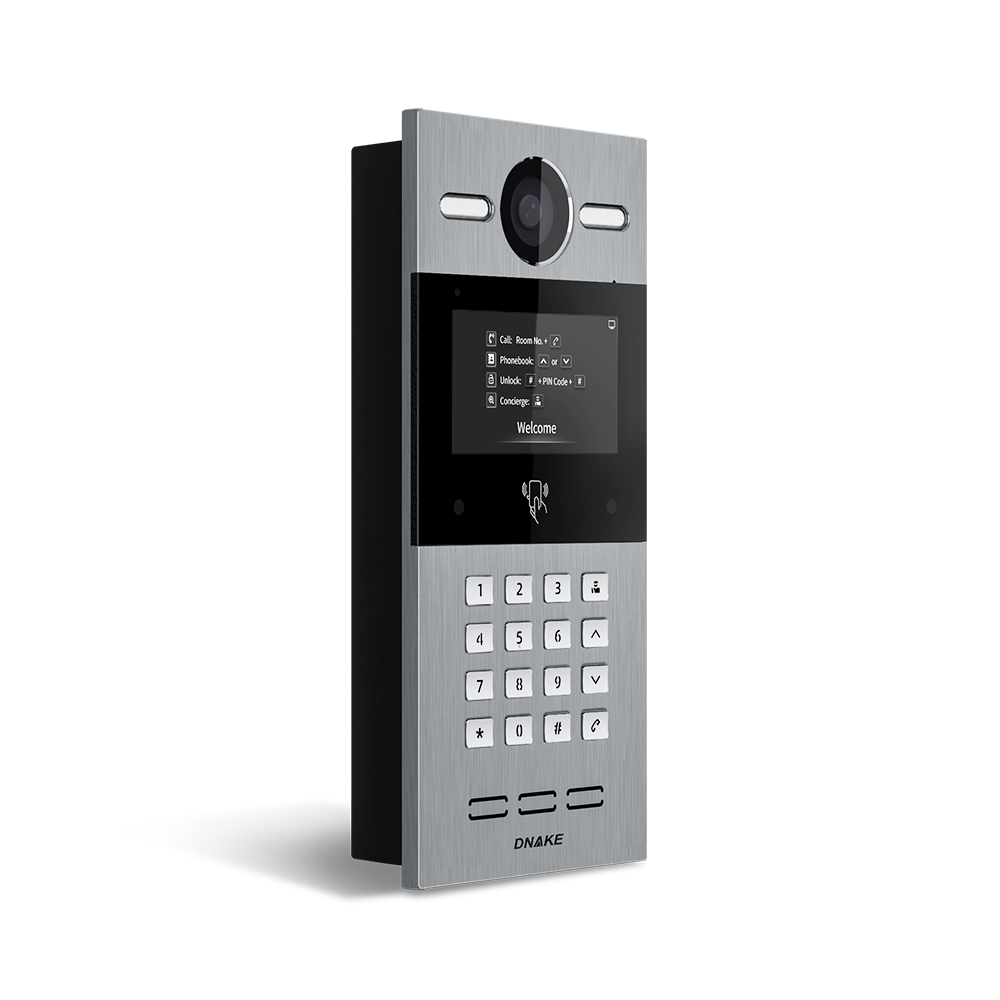

IP Based Nurse Call System - 4.3” SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| Front Panel | Aluminum |
| Button | Mechanical |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 9W |
| Camera | 2MP, CMOS |
| Door Entry | IC card(13.56MHz), ID card(125kHz), PIN code, NFC |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Installation | Flush Mounting & Surface Mounting |
| Flush Mounting Dimension | 295 x 133 x 63.5 mm |
| Surface Mounting Dimension | 295 x 133 x 42.7 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 4.3-inch TFT LCD |
| Resolution | 480 x 272 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 110°（H） |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 3 |
| Reset Button | 1 |
| Exit Button/Door Magnetic | 4 |
| Door Magnetic | 1 |
Product detail pictures:
Related Product Guide:
We have state-of-the-art tools. Our products are exported towards the USA, the UK and so on, enjoying a fantastic reputation amongst customers for IP Based Nurse Call System - 4.3” SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Georgia , Buenos Aires , venezuela , Being guided by customer demands, aiming at improving the efficiency and quality of customer service, we constantly improve products and provide more comprehensive services. We sincerely welcome friends to negotiate business and start cooperation with us. We hope to join hands with friends in different industries to create a brilliant future.
-
Datasheet 904M-S3.pdfDownload
