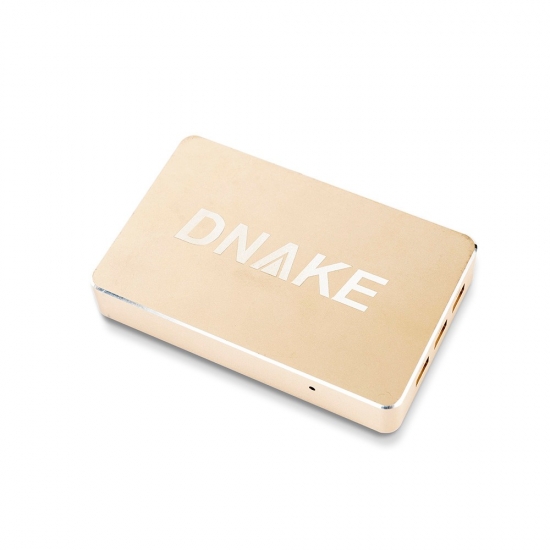

Ip Door Access Control - Android Facial Recognition Box – DNAKE Detail:
1. The box adopts deep learning algorithms to implement accurate and instant facial recognition.
2. When it works with IP camera, it allows quick access to any entrance.
3. Max. 8 IP cameras can be connected for convenient use.
4. With the capacity of 10,000 facial images and instant recognition of less than 1 second, it is suitable for different access control system in office, entrance, or public area, etc.
5. It is easy to configure and use.
| Technical Specifications | |
| Model | 906N-T3 |
| Operation System | Android 8.1 |
| CPU | Dual-core Cortex-A72+Quad-Core Cortex-A53, Big Core and Little Core Architecture; 1.8GHz; Integration with Mali-T860MP4 GPU; Integration with NPU: up to 2.4TOPs |
| SDRAM | 2GB+1GB(2GB for CPU,1GB for NPU) |
| Flash | 16GB |
| Micro SD Card | ≤32G |
| Product Size(WxHxD) | 161 x 104 x 26(mm) |
| Number of Users | 10,000 |
| Video Codec | H.264 |
| Interface | |
| USB Interface | 1 Micro USB, 3 USB Host 2.0(Supply 5V/500mA) |
| HDMI Interface | HDMI 2.0, Output Resolution: 1920×1080 |
| RJ45 | Network Connection |
| Relay Output | Lock Control |
| RS485 | Connect to Device with RS485 Interface |
| Network | |
| Ethernet | 10M/100Mbps |
| Network Protocol | SIP, TCP/IP, RTSP |
| General | |
| Material | Aluminum Alloy and Galvanized Plate |
| Power | DC 12V |
| Power Consumption | Standby Power≤5W, Rated Power ≤30W |
| Working Temperature | -10°C~+55°C |
| Relative Humidity | 20%~93%RH |
-
Datasheet 906N-T3.pdfDownload
