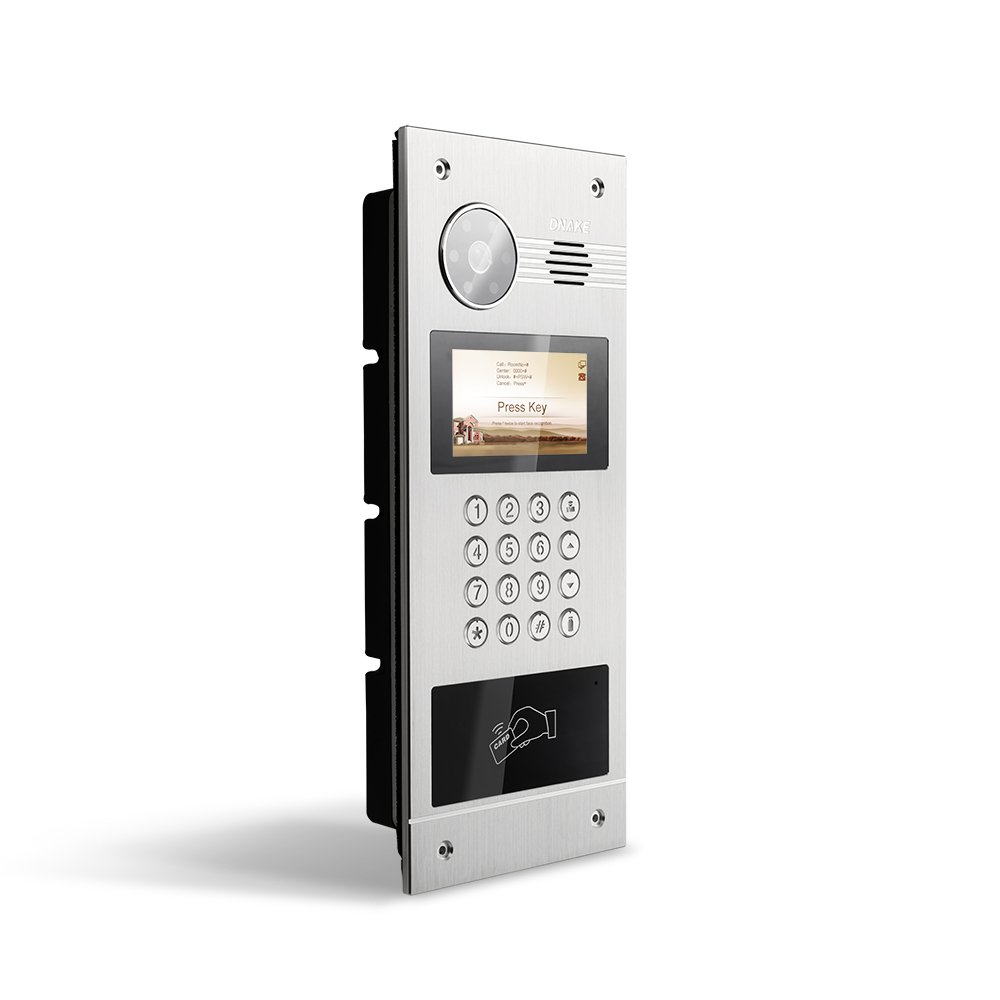

OEM Supply Camera Intercom System - 902D-A9 – DNAKE Detail:
1. The door can be unlocked by facial recognition, password, or IC/ID cards (max. 100,000PCS).
2. One-megapixel camera provides 720p resolution video.
3. It's a SIP-based call station with a numeric keypad and built-in card reader.
4. Integration with elevator control system brings more convenience to life and increases security in the building.
5. The accuracy of face recognition reaches 99% with the capacity of 10,000 face images, which ensures better door access.
6. The combination of infrared detection function and facial recognition unlocking brings the user a touch-free access control solution.
7. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
8. According to the user needs, it can be powered by PoE or external power source.
2. One-megapixel camera provides 720p resolution video.
3. It's a SIP-based call station with a numeric keypad and built-in card reader.
4. Integration with elevator control system brings more convenience to life and increases security in the building.
5. The accuracy of face recognition reaches 99% with the capacity of 10,000 face images, which ensures better door access.
6. The combination of infrared detection function and facial recognition unlocking brings the user a touch-free access control solution.
7. When equipped with one optional unlocking module, two relay outputs can be used to control two locks.
8. According to the user needs, it can be powered by PoE or external power source.
| Physical Property | |
| System | Android 4.4.2 |
| CPU | Quad-Core 1.3GHz |
| SDRAM | 512MB DDR3 |
| Flash | 8GB NAND Flash |
| Display | 4.3" TFT LCD, 480x272 |
| Face Recognition | Yes(optional) |
| Power | DC12V/POE(optional) |
| Standby power | 3W |
| Rated Power | 6W |
| Button | Mechanical or Touch button |
| RFID Card Reader | IC/ID, 100,000 pcs |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Multiple Installation | Flush mounted, Surface mounted |
| Audio & Video | |
| Audio Codec | G.711, G.729 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel (WDR) |
| LED Night Vision | Yes(6pcs) |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP, RTSP |
| Interface | |
| Relay output | Yes |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 902D-A9.pdfDownload
Product detail pictures:
Related Product Guide:
We know that we only thrive if we can guarantee our combined price tag competiveness and top quality advantageous at the same time for OEM Supply Camera Intercom System - 902D-A9 – DNAKE, The product will supply to all over the world, such as: Nigeria , Botswana , Hanover , We have customers from more than 20 countries and our reputation has been recognized by our esteemed customers. Never-ending improvement and striving for 0% deficiency are our two main quality policies. Should you need anything, don't hesitate to contact us.
-
Datasheet 904M-S3.pdfDownload
