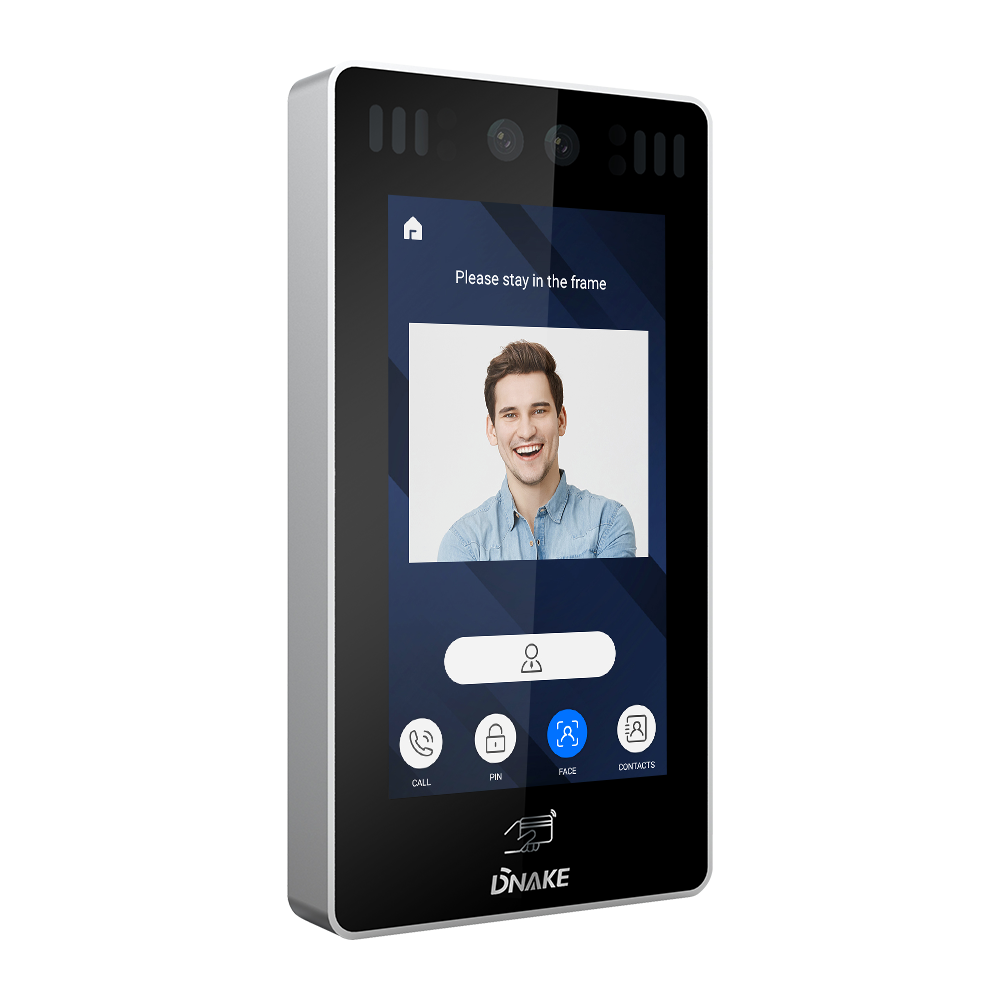

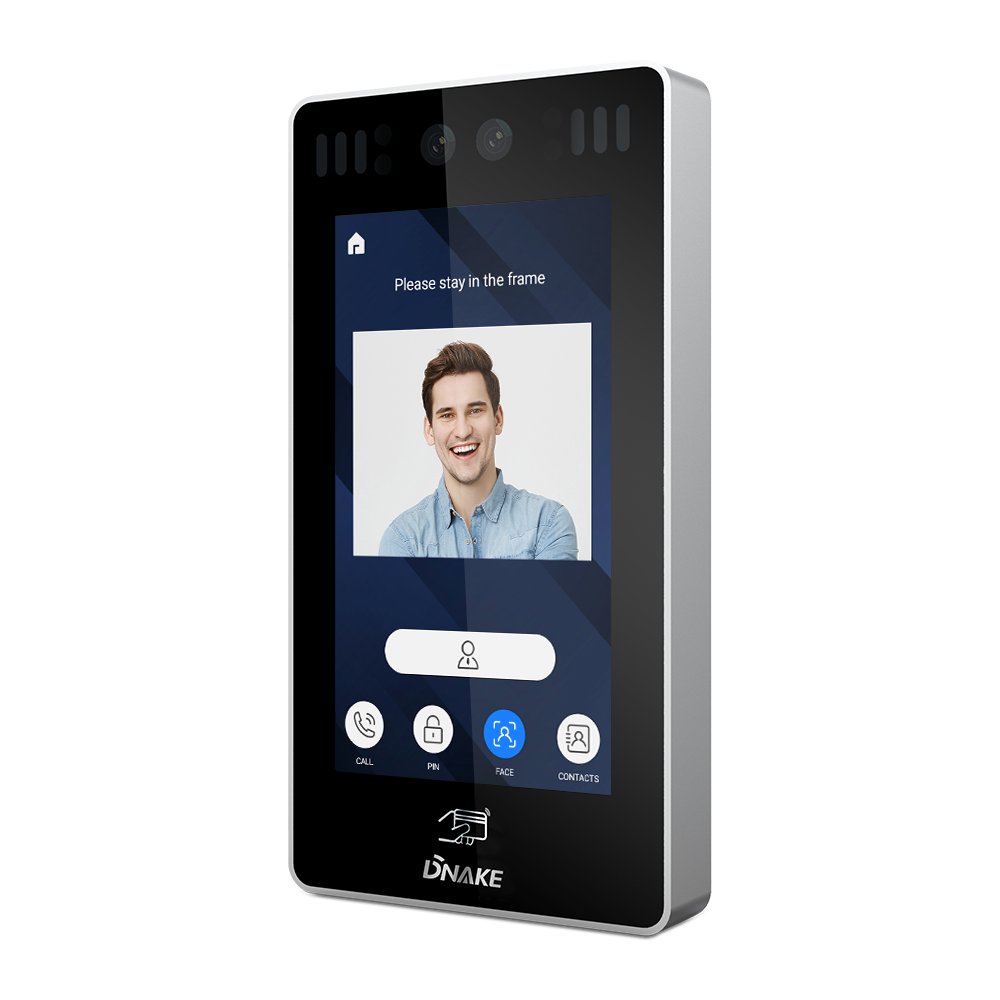

Security Doorbell Systems - 7” Facial Recognition Android Doorphone – DNAKE Detail:
| Physical Property | |
| System | Android |
| RAM | 2GB |
| ROM | 8GB |
| Front Panel | Aluminum |
| Power Supply | DC12V/2A or PoE (External PoE) |
| Standby Power | 5W |
| Rated Power | 25W |
| Camera | 2MP, CMOS |
| IR Sensor | Support |
| Door Entry | Face, IC card(13.56MHz), PIN code, NFC |
| IP Rating | IP65 |
| Installation | Surface mounting |
| Dimension | 227 x 122 x 20 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 7-inch TFT LCD |
| Screen | 7-inch capacitive touch screen |
| Resolution | 1024 x 600 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | up to 1920 x 1080 |
| Viewing Angle | 100°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 1 |
| Exit Button | 1 |
| Door Magnetic | 1 |
Product detail pictures:
Related Product Guide:
As for aggressive price ranges, we believe that you will be searching far and wide for anything that can beat us. We can easily state with absolute certainty that for such high-quality at such price ranges we're the lowest around for Security Doorbell Systems - 7” Facial Recognition Android Doorphone – DNAKE, The product will supply to all over the world, such as: South Korea , Lithuania , Barcelona , We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products in combination with our excellent pre-sale and after-sales service ensures strong competitiveness in an increasingly globalized market. We are willing to cooperate with business friends from at home and abroad and create a great future together.
-
Datasheet 904M-S3.pdfDownload
