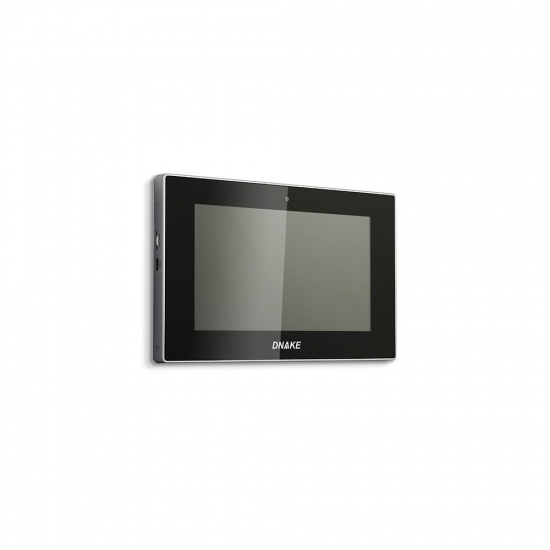

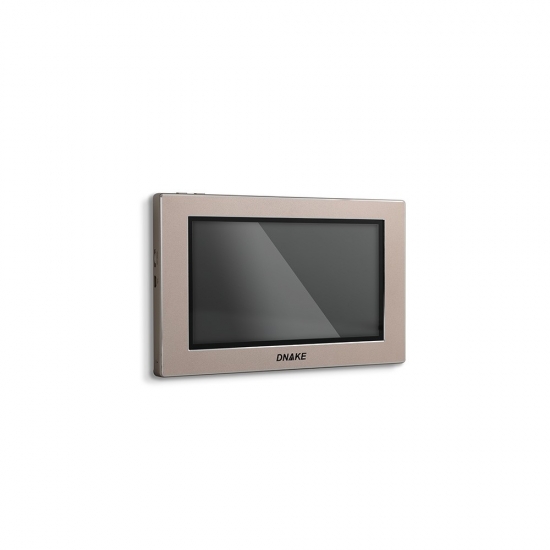

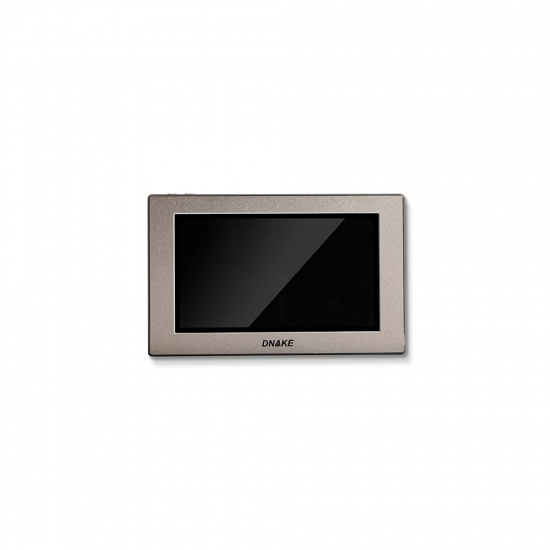

Sip Door Phone - 904M-S4 – DNAKE Detail:
1. 7-inch touch screen display delivers clear visual display and ultimate screen experience.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can find and install any app in the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor, etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it integrates with home automation system, you can control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can answer and see the visitors before granting or denying access as well as call the neighbors using the indoor monitor.
8. It can be powered by PoE or external power source.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can find and install any app in the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor, etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it integrates with home automation system, you can control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can answer and see the visitors before granting or denying access as well as call the neighbors using the indoor monitor.
8. It can be powered by PoE or external power source.
| Physical Property | |
| System | Android 6.0.1 |
| CPU | Octal core 1.5GHz Cortex-A53 |
| Memory | DDR3 1GB |
| Flash | 4GB |
| Display | 7" TFT LCD, 1024x600 |
| Button | Touch Button(optional) |
| Power | DC12V/POE |
| Standby power | 3W |
| Rated Power | 10W |
| TF Card & USB Support | No |
| WIFI & Bluetooth | Optional |
| Temperature | -10℃ - +55℃ |
| Humidity | 20%-85% |
| Audio & Video | |
| Audio Codec | G.711/G.729 |
| Video Codec | H.264 |
| Screen | Capacitive, Touch Screen |
| Camera | Yes(Optional), 0.3M Pixels |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | SIP,TCP/IP, RTSP |
| Features | |
| IP Camera Support | 8-way Cameras |
| Door Bell Input | Yes |
| Record | Picture/Audio/Video |
| AEC/AGC | Yes |
| Home Automation | Yes(RS485) |
| Alarm | Yes(8 Zones) |
-
Datasheet 904M-S4.pdfDownload
